V-TUF Super Series 200BAR 15L/min Direct Drive Pump 1″ Hollow Shaft + Unloader Valve Kit

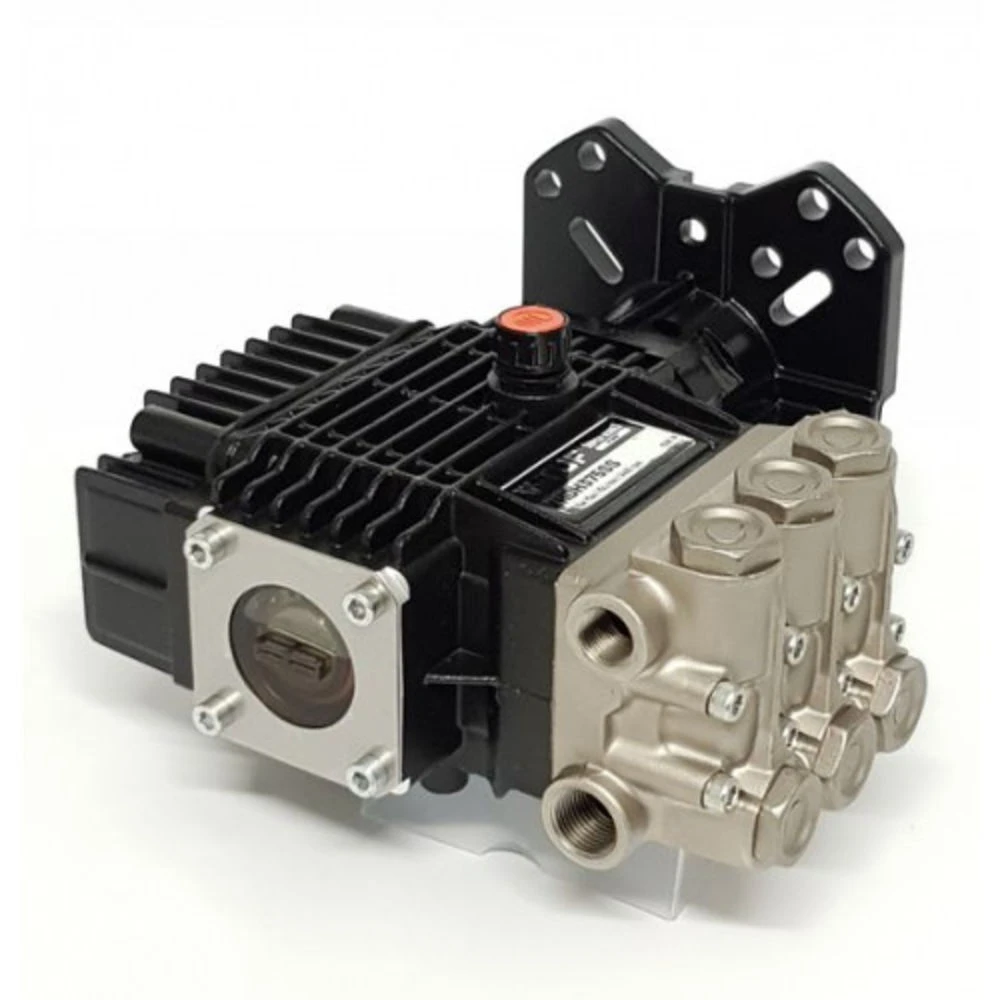

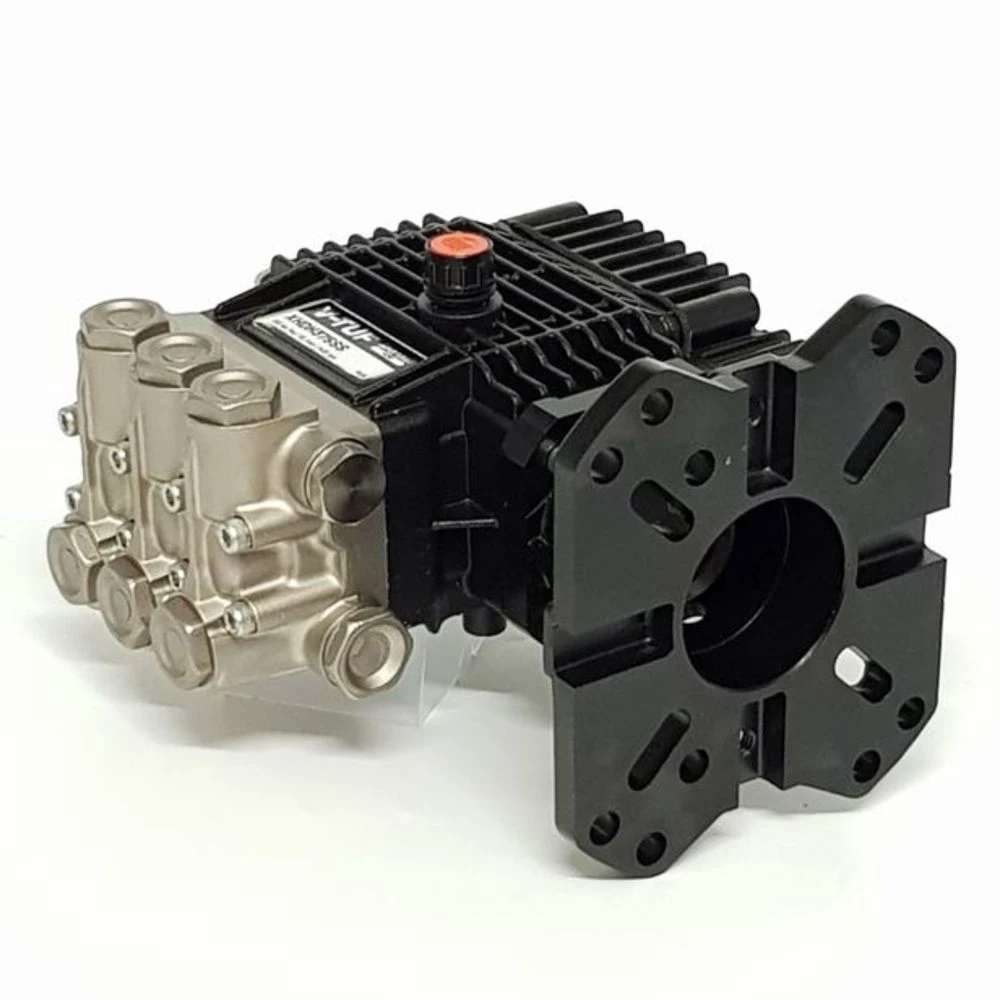

SUPER SERIES XHDH375SS Hollow Shaft Pump – 15 L/MIN @ 200BAR, 3600RPM, 1 inch (25.4mm) hollow Shaft.The XHDH375SS Hollow Shaft Pump is a replacement for WW961 , 961 or WS430080005-s and VT6 pump3600 RPM ideal to be driven by:Petrol engines: HONDA GX270 ; HONDA GX390 ; VLCP15 & Diesel engines: VD10L100 ; VLCD10 – Maximum pressure must be set to suit the power rating of these motors. (ALWAYS MAKE SURE the motor is running at least 15% within its maximum amperage)9 HP required to run at full pressure:Super robust transmission system, 3-piston alternating volumetric pump for use on heavy use cleaning units and industrial systems to reduce downtime and running costs.SUPER Robustly made with a perfect balance of weight to ensure minimum fatigue on motor and gearbox mountings.NICKEL PLATED SOLID BRASS PUMP HEAD – Greater heat & weather resistance Pump body and cover in die-cast aluminium alloy with cataphoretic coating. Cathaphoresis painting is a surface treatment intended to give metal elements and other alloys a considerable resistance to chemical and environmental corrosion.Rear cover with oil drain outlet and oil sight glass. Cap with dipstick for oil level on body pump.Pistons driven by super series crank-connecting rod mechanism.Pump shaft in pressed high-strength steel.SEAL KIT VTPKIT7VALVE KIT VTPKIT2
